XEB15
Electric walkie stacker with 3,300 lb capacity and a 13.1 ft lift height.
Back to American Liquidators LLCFinancing available — ask usFollow for Drops — get alerted if this item opens in a surprise two-hour Drop.
Customer lot: American Liquidators LLC
XE series manufacturer and inventory-folder media
ZowellElectric Stacker
XE20
Compact counterbalance stacker with 4,400 lb capacity and no outriggers in front of the load.
$4,499USD per unit
2 available
Elizabeth, NJ
2023 New Old Stock / Never Used
Choose an action above to send an inquiry about this listing — or write to sales@lotwagon.com / call +1 551 267 4813. Inspection at the seller's premises is by appointment.

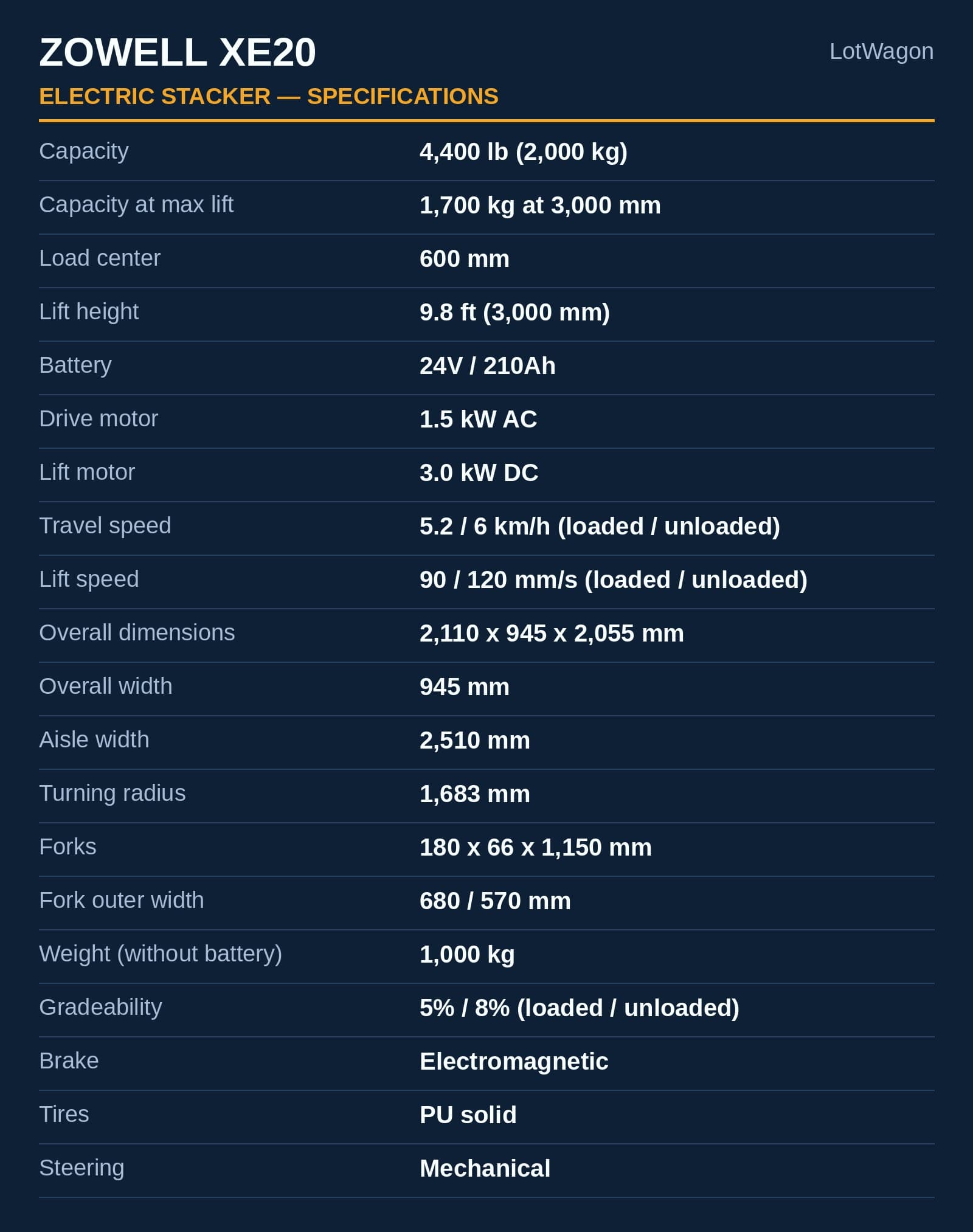

Equipment details
Specifications are transcribed from manufacturer documentation.
Capacity4,400 lb (2,000 kg)
Capacity at max lift1,700 kg at 3,000 mm
Load center600 mm
Lift height9.8 ft (3,000 mm)
Battery24V / 210Ah
Drive motor1.5 kW AC
Lift motor3.0 kW DC
Travel speed5.2 / 6 km/h (loaded / unloaded)
Lift speed90 / 120 mm/s (loaded / unloaded)
Overall dimensions2,110 x 945 x 2,055 mm
Overall width945 mm
Aisle width2,510 mm
Turning radius1,683 mm
Forks180 x 66 x 1,150 mm
Fork outer width680 / 570 mm
Weight (without battery)1,000 kg
Gradeability5% / 8% (loaded / unloaded)
BrakeElectromagnetic
TiresPU solid
SteeringMechanical
